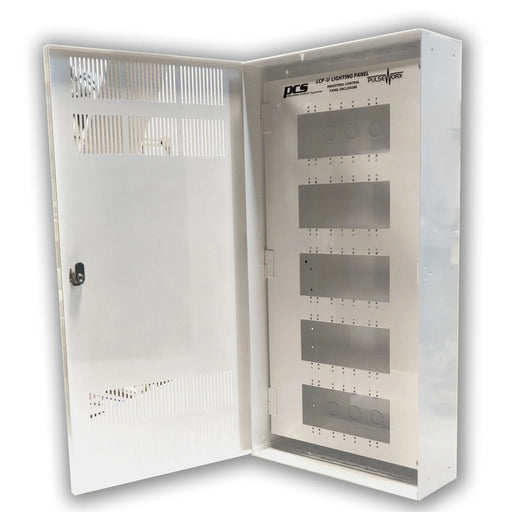

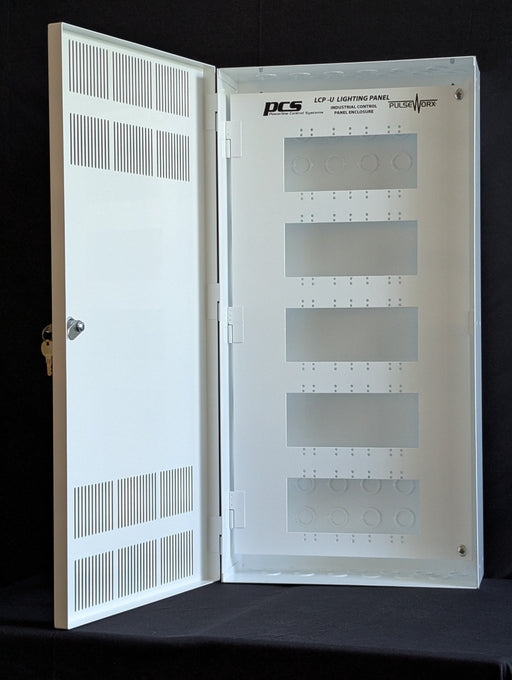

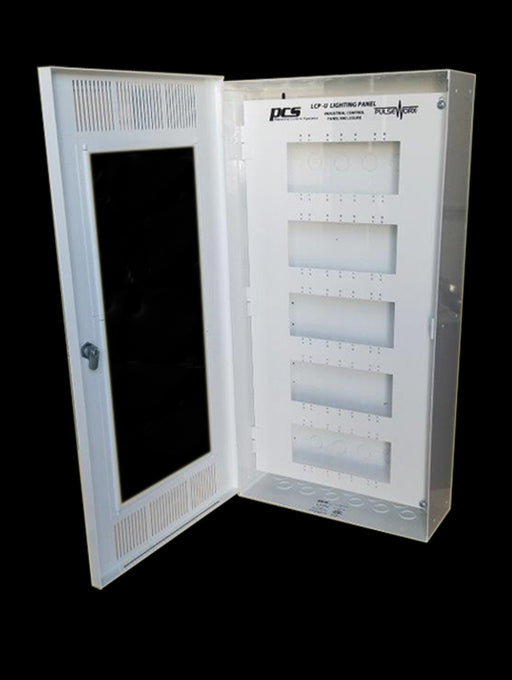

PulseWorx LCP-U: Lighting Control Panel

$877.80

Quantity

Dealer/Installer? Contact us for dealer pricing!

Please note: LCP-U cannot be shipped to PO Box (USPS). UPS shipping only.

Not getting dealer pricing? Want to know how to become a dealer/installer? Send an email to PCS Sales Team and we will provide information about our dealer program.

The Lighting Control Panel has many features:

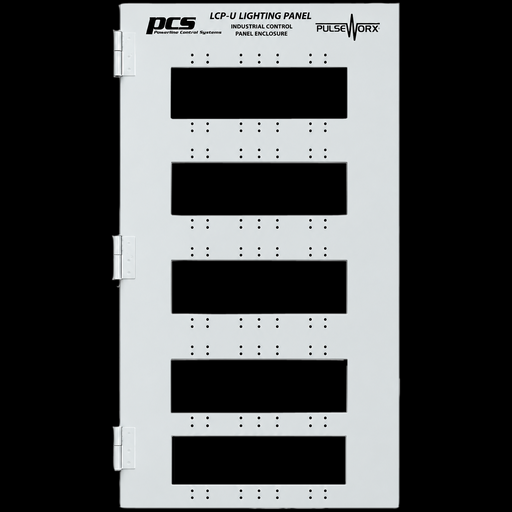

Holds standard size switches and keypads from many manufacturers.
For example, with PulseWorx devices, it can hold up to ten WS1DL-24, fifteen WS1DL-15, or twenty WS1DL-6 dimmers
Designed to be flush-mounted between two 16-inch center to center studs or surface-mounted on any flat surface
De-rating is not needed as all the heat generated by high-power lighting controls is properly dissipated

A few important notes on ordering:

Due to their weight, LCP-Us are always shipped UPS ground.
The LCP-U price isn’t included in the “free shipping” rule option
Any order with a LCP-U will have the entire order shipped UPS ground. If you are ordering other PulseWorx products and want those shipped quicker than UPS ground, then create two different orders with LCP-U(s) in one order and other products in the other.
Package dimension: 33" x 18" x 10"

Spec. Sheet: Click here 🡄🡄

ELECTRICAL
Certifications	Safety tested for USA and Canada to ETL tested to UL508 UL-508-2010 CSA C22.2 #14-2010
MECHANICAL
Button Type	None
Mounting	Screw Surface Mount
Dimensions	Height: 29.0 in Width: 14.5 in Depth: 5.0 in
US Patent No.	6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
