PulseWorx LCP-12: Small version of Lighting Control Panel

LCP products will be shipped default to UPS ONLY.

The Lighting Control Panel 12 has many features that make it perfect for centralizing lighting controls:

LCP-12 breakdown video here

https://youtube.com/shorts/hpYndacfN-o?si=abx7-AcgtJ3qKc-Z

• LCP-12 Technical Drawing
• Get switches and load controls into closets or electrical rooms and only put keypads in key room locations.
• Once you have good communication with the LCP-Us locations you have good communication with all load controls.
• Holds standard size switches and keypads from many manufacturers.

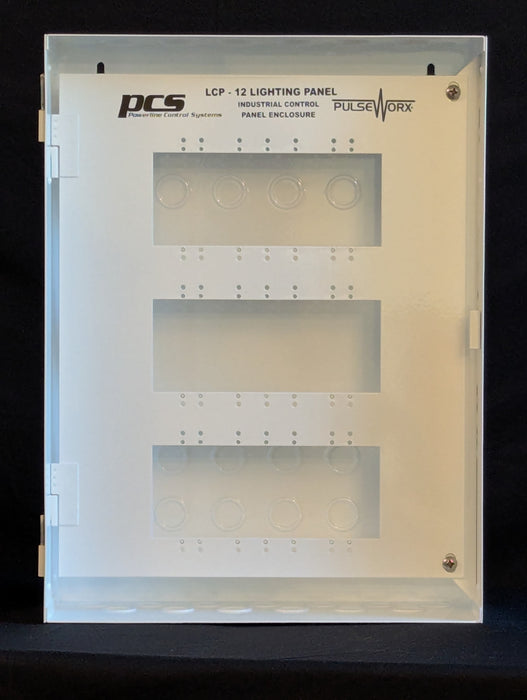

• Configured as (3) 4-Gang positions. Mounts 12 normal single-gang devices, like 600W switches.

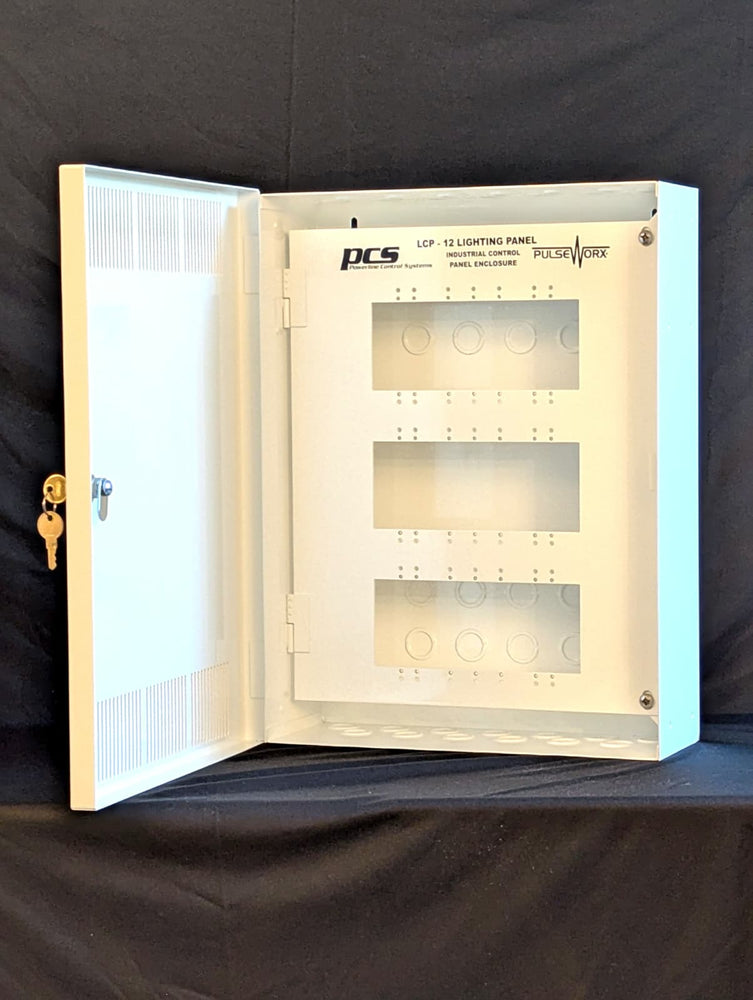

• Both the door and inner panel lift off hinges for easy wiring and installation.

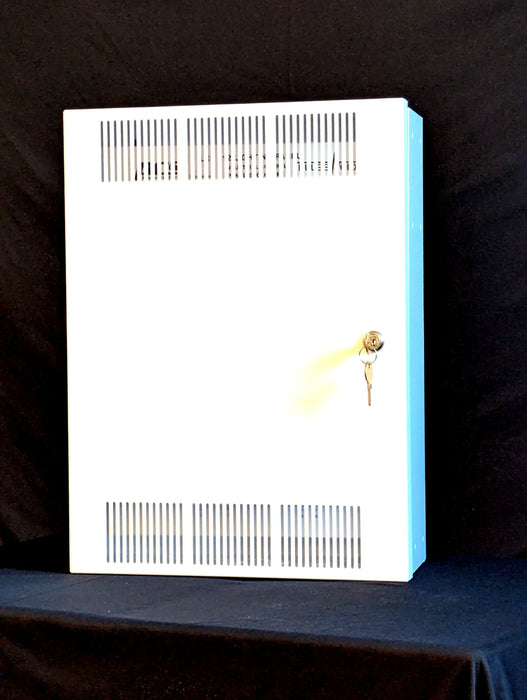

• Comes with lock and key.
• For example, with PulseWorx devices, it can hold up to (6) WS1DL-24, (9)WS1DL-15, or (12) WS1DL-6 dimmers
• Designed to be flush-mounted between two 16-inch center to center studs or surface-mounted on any flat surface
• De-rating is not needed as all the heat generated by high-power lighting controls is properly dissipated in the very large panel space.
• Many customers use for Lutron Ra 2/3 and Pico devices, so experience indicates the box is not a problem for RF reception.


A few important notes on ordering:

• LCP-12 will be shipped via. UPS.
• Any order with a LCP-12 will have the entire order shipped UPS.
• Package dimension: 33" x 18" x 10" ~20lbs

Dealer/Installer? Contact us for dealer pricing!

Please note: LCP-U cannot be shipped to PO Box (USPS). UPS shipping only.

Not getting dealer pricing? Want to know how to become a dealer/installer? Send an email to PCS Sales Team and we will provide information about our dealer program.

LCP-U Spec. Sheet: Click here 🡄🡄
