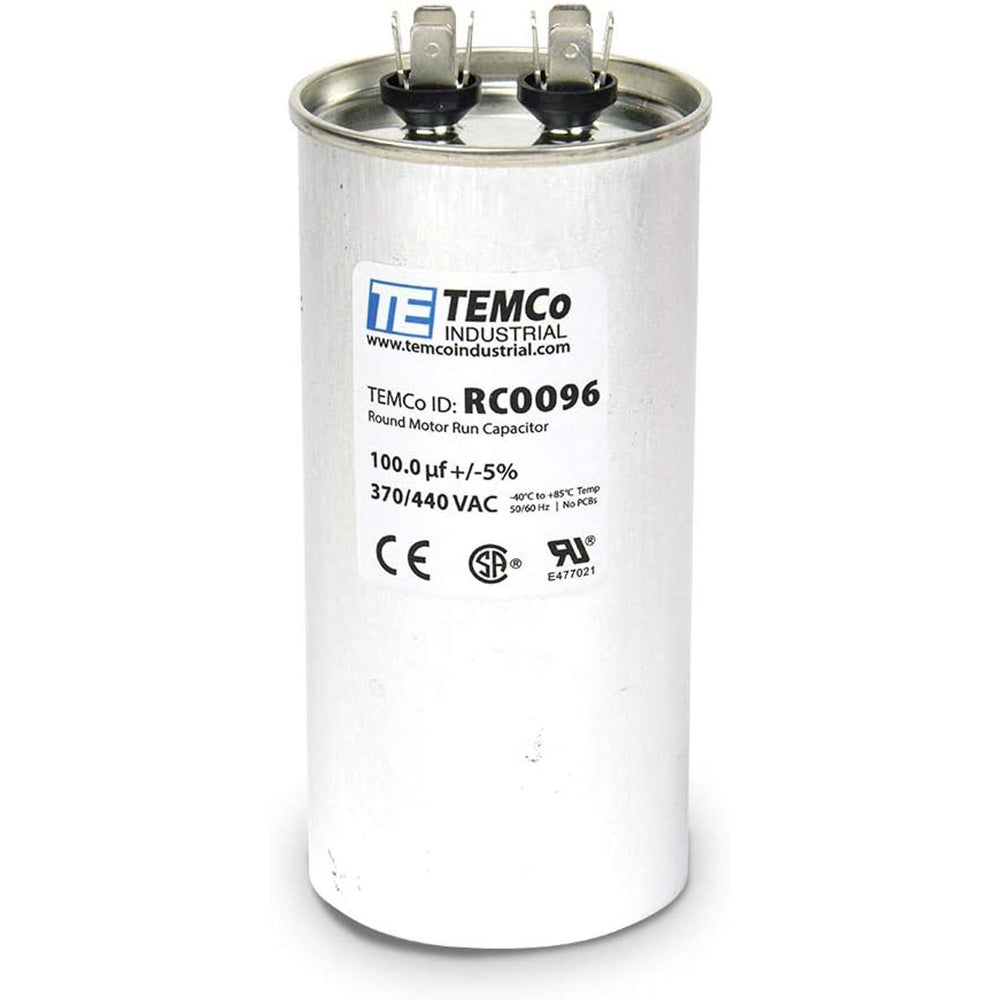

AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC
Click or scroll to zoom
Tap or pinch to zoom
AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC
Click or scroll to zoom
Tap or pinch to zoom
AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC
Click or scroll to zoom
Tap or pinch to zoom
AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC
AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC

AC Electric Motor Run Capacitor 100 uf (mfd) 440 VAC

$40.00

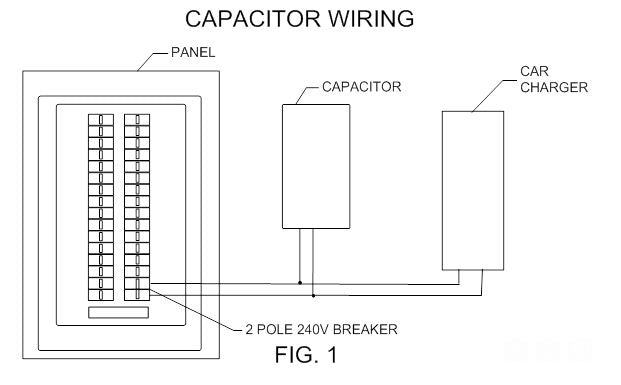

  • Capacitor for noise filtering across 240 VAC for Pool pump, car charger, well pump
  • Install after 240 VAC breaker powering the noisy device
  • Install in paralle with 240 VAC lines after 2-pole breaker
  • 100 uf 370/440 VAC
  • No PCBs
  • For use with 1 and 3 phase motors
  • Heavy aluminum casing with steel cap
  • 10,000 AFC Protected
  • -40 ºC to 85ºC temp.

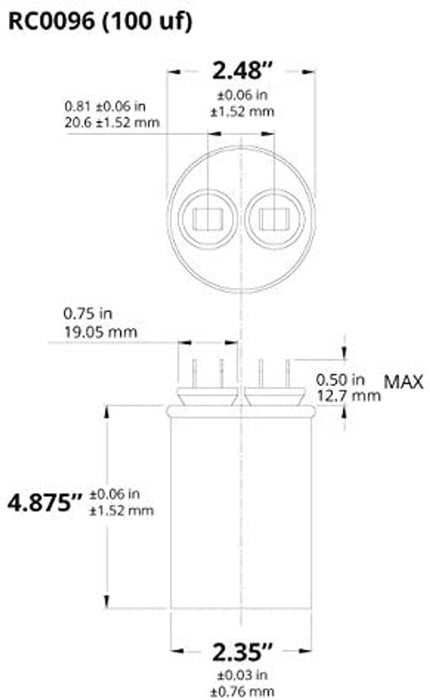

Specifications

Length (Inches): 2.35
Width (Inches): 2.35
Agency Approvals: UL and CUL Listed, 10,000 AFC Protected
Temperature Range: -40 to +85 Deg C
Tolerance: 5% (+/-)
Overall height (Inches): 5.9
Terminals per Post: 4

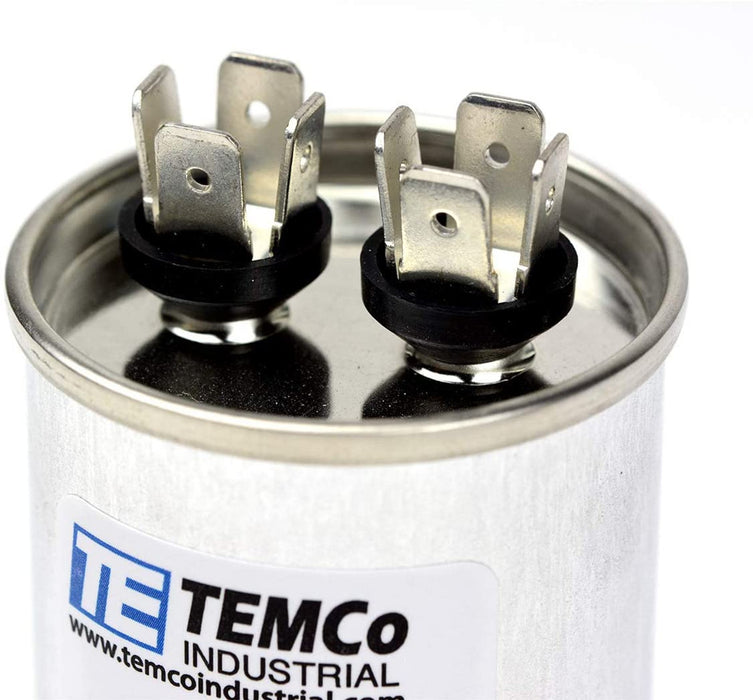

Terminal Type: 1/4 in. Quadruple QCT
Diameter (Inches): 2.48
Construction: Aluminum w/ Steel Cap
Frequency Hz: 50/60
uf / mfd: 100
PCB's: PCB Free
Format: Round
Capacitor Maximum Voltage: 370/440 VAC
