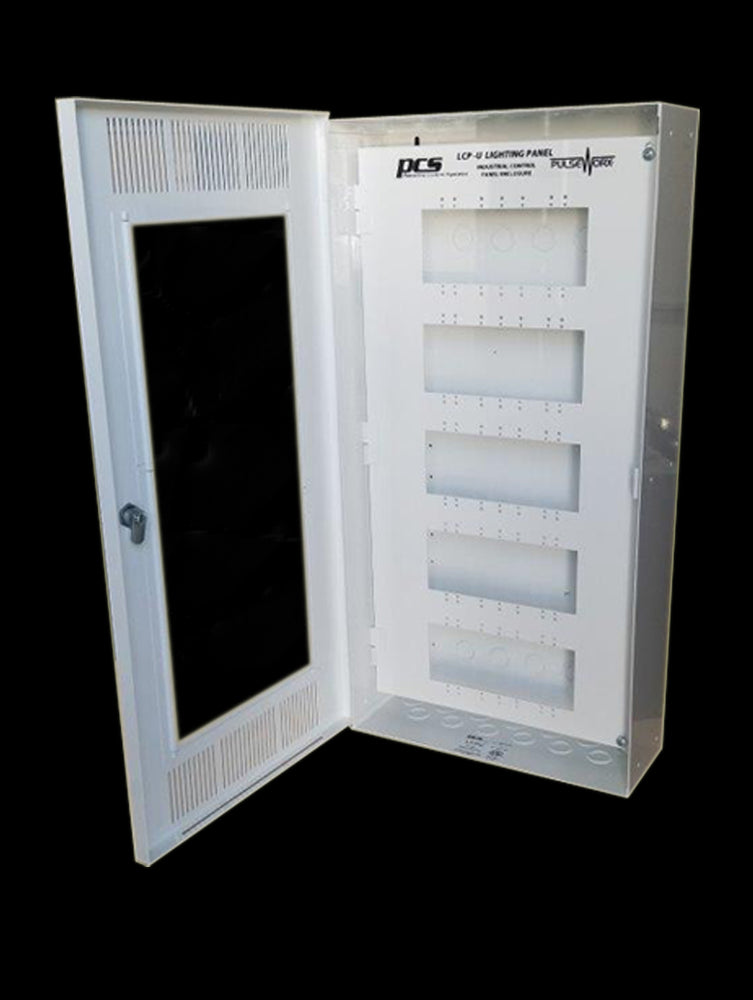

PulseWorx LCP-RF: Lighting Control Panel Radio Frequency

Sold out
$999.00

The Lighting Control Panel Radio Frequency has many features that make it perfect for centralizing lighting controls:

  • A clear panel cover, constructed of plexiglass.  This cover option provides both a visual attractive appearance
  • Improves Signal transmission by lowering the attenuation of a closed metal box
  • Get switches and load controls into closets or electrical rooms and only put keypads in key room locations.
  • Once you have good communication with the LCP-RFs locations you have good communication with all load controls.
  • Holds standard size switches and keypads from many manufacturers.
  • Configured as (5) 4-Gang positions. Mounts 20 normal single-gang devices, like 600W switches.
  • Both the door and inner panel lift off hinges for easy wiring and installation.
  • Comes with lock and key.
  • For example, with PulseWorx devices, it can hold up to (10) WS1DL-24, (15)WS1DL-15, or (20) WS1DL-6 dimmers
  • Designed to be flush-mounted between two 16-inch center to center studs or surface-mounted on any flat surface
  • De-rating is not needed as all the heat generated by high-power lighting controls is properly dissipated in the very large panel space.
  • Many customers use for Lutron Ra 2/3 and Pico devices, so experience indicates the box is not a problem for RF reception.
  • The inner panel comes with the LCP-RF, but can be purchased separately for customers with old panels that had a different inner panel (10 years ago).

A few important notes on ordering:

  • Due to their weight, LCP-RFs are always shipped UPS.
  • Any order with a LCP-RF will have the entire order shipped UPS.
  • Package dimension: 33" x 18" x 10" ~30lbs
Dealer/Installer? Contact us for dealer pricing!
Please note: LCP-U cannot be shipped to PO Box (USPS). UPS shipping only.

Not getting dealer pricing? Want to know how to become a dealer/installer? Send an email to PCS Sales Team and we will provide information about our dealer program.

Spec. Sheet: Click here 🡄🡄

ELECTRICAL



Certifications

Safety tested for USA and Canada to ETL tested to UL508

UL-508-2010  CSA C22.2 #14-2010

MECHANICAL



Button Type

None

Mounting

Screw Surface Mount

Dimensions

Height: 29.0 in Width: 14.5 in  Depth: 5.0 in

US Patent No.

6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
